JVC LX-NZ3 4K Laser HDR DLP Projector (White)

Regular price $3,499.95
Sale price $3,499.95 Regular price
Save $-3,499.95 (%)

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

JVC LX-NZ3 4K Laser HDR DLP Projector (White) Overview

Product Information

Model: LX-NZ3W | UPC: 046838081880


What's In The Box

Product Information

Model: LX-NZ3W | UPC: 046838081880

So Easy. So Exciting. All the Time.

The JVC LX-NZ3 4K Laser HDR DLP Projector features an ultra-bright 3,000-lumen laser light source, and a compact design, making it ideal for a wide range of viewing environments. The latest auto-tone mapping technology ensures that 4K HDR content is played back with the best picture quality every time.


  • 3,000 Lumen BLU-Escent laser phosphor light source
  • 2nd Generation .47” TRP DMD technology provides 4K (3840x2160) resolution
  • Auto Tone Mapping for 4K HDR10 content
  • HDR10/HLG Auto Select
  • 100% REC 709 Color Space (BT2020 compatible)
  • Wide lens shift range (V +/- 60%, H +/- 23%)
  • Lens: 1.6X Wide Zoom (1.36:1 - 2.18:1)
  • ∞:1 Contrast with Dynamic Laser Dimming
  • Five Mode HDR PQ Curves based on latest JVC D-ILA models
  • 18Gbps HDMI/HDCP 2.2 Compatible Input (HDMI-1 only)
  • Electronic Keystone +/- 30% (Vertical Only)
  • Control: RS232/12V Screen Trigger Output
  • Dimensions (L x W x H): 13-1/8" x 15-7/8" x 5-1/4"
  • Weight: 13.89 lbs.
  • 1 Year Parts & Labor Warranty

BLU-Escent Laser Phosphor Light Source

A blue laser and a yellow phosphor panel replace the traditional projector lamp assembly. The benefits include 3,000 lumens brightness, 20,000 hours long life in the highest power laser setting, and laser dimming for infinite contrast.

2nd Generation .47" TRP DMD Device

DMD (digital micromirror device) is a digitally controlled mico-opto-electromechanical system (MOEMS) spatial light modulator (SLM). When coupled to an appropriate optical system, the DMD displays very crisp, high-resolution images or videos.

HRD10 plus Hybrid Log-Gamma

The LX-NZ3 impresses with Auto Select for HDR10 & HLG and Auto Tone Mapping, using 5 different PQ curves derived from JVC's D-ILA projector line. The projector can display Max CLL/Max FALL information for advanced adjustment.



  • Picture
    • Device: 0.47" DMD (1920 x 1080)
    • Resolution: 3840 x 2160
    • Lens shift: +/- 60% vertical & +/- 23% horizontal, motorized
    • Light source: BLU-Escent (Laser phosphor)
    • Lamp life: Approx. 20,000 hours in normal mode
    • Brightness: 3,000 lumens
    • Contrast ratio: Infinity:1 (Dynamic contrast ratio)

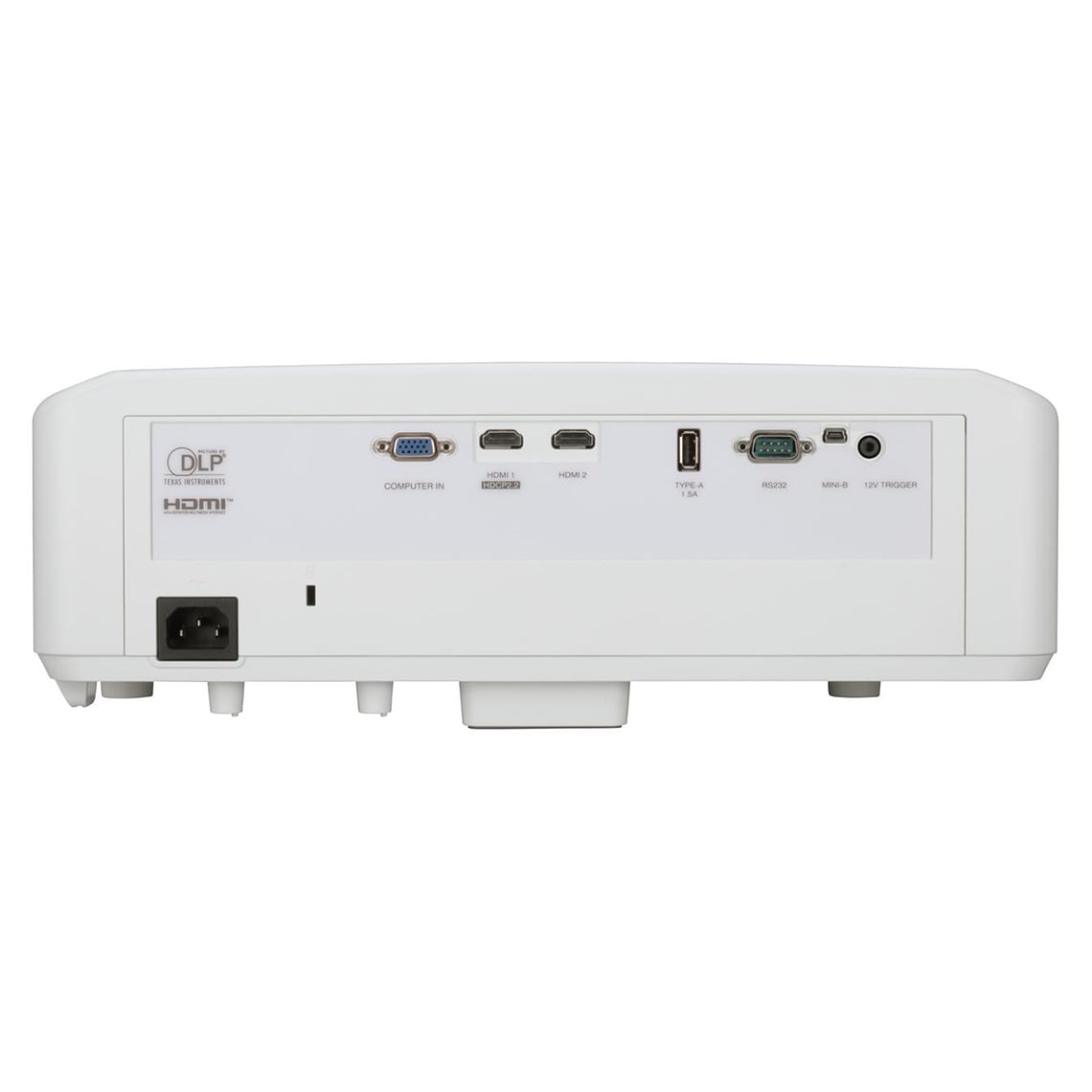

    • Video input terminals (Back panels)
      • PC: 1 (D-sub 15pin)
    • Control terminals
      • RS232C: 1 (D-sub 9pin)
  • General
    • Noise level: 29 dB (Eco) / 34 dB (Normal)
    • Power requirement: AC110-240V, 50/60 Hz
    • Dimensions (W x H x D): 15-7/8" x 5-3/4" x 13-1/2"
    • Weight: 13.86 lbs

What's In The Box

  • LX-NZ3 projector
  • Manual
  • Warranty
  • Remote
