Definitive Technology

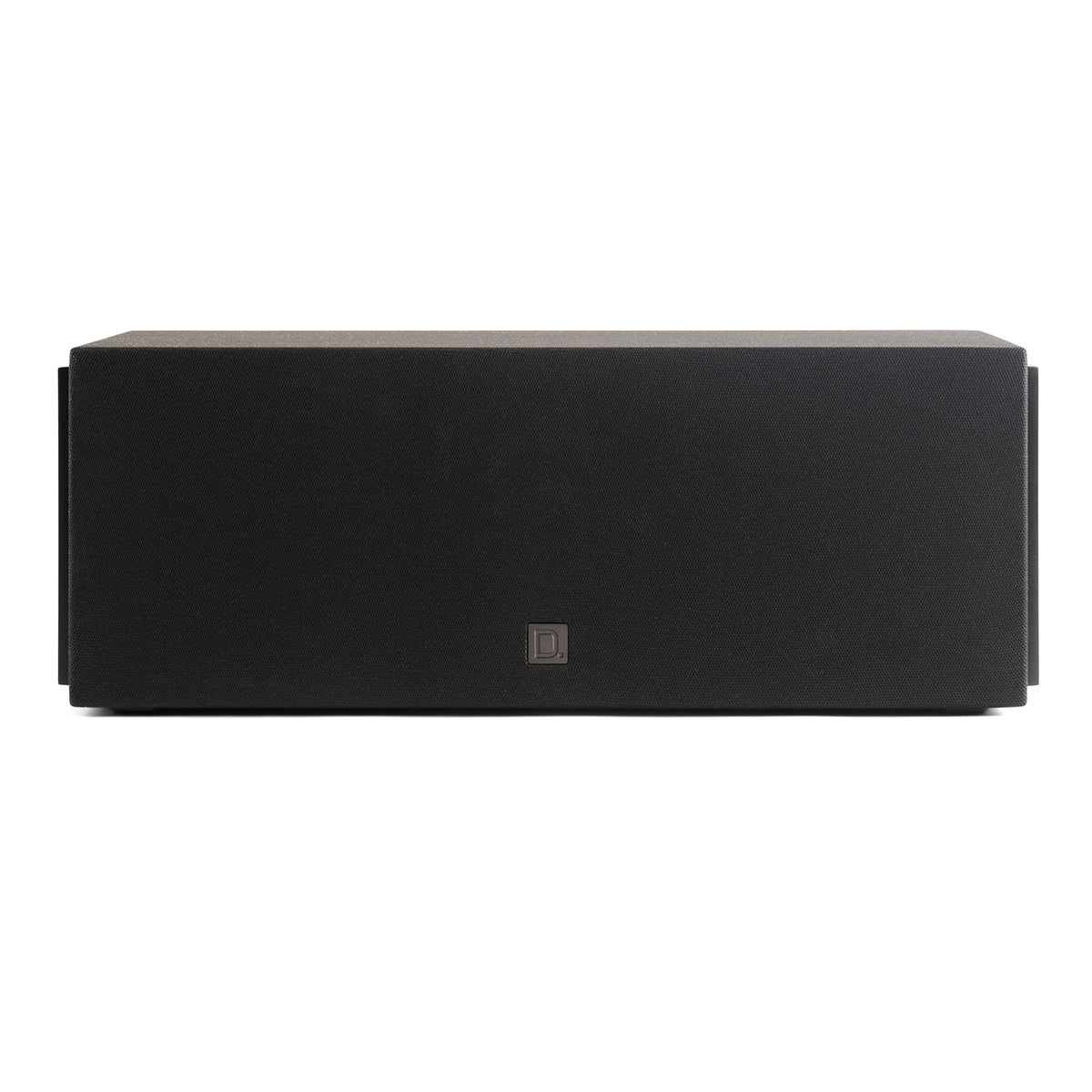

Definitive Technology Dymension DM10 Compact Center Channel Speaker with Integrated Passive Radiator

Regular price $489.00
Sale price $489.00 Regular price
$699.00 Save $210.00 (30%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Definitive Technology Dymension DM10 Compact Center Channel Speaker with Integrated Passive Radiator Overview

Product Information

Model: 300564-01-00-005 | UPC: 747192137076

Specifications

What's In The Box

Product Information

Model: 300564-01-00-005 | UPC: 747192137076

Big Sound in a Compact Footprint

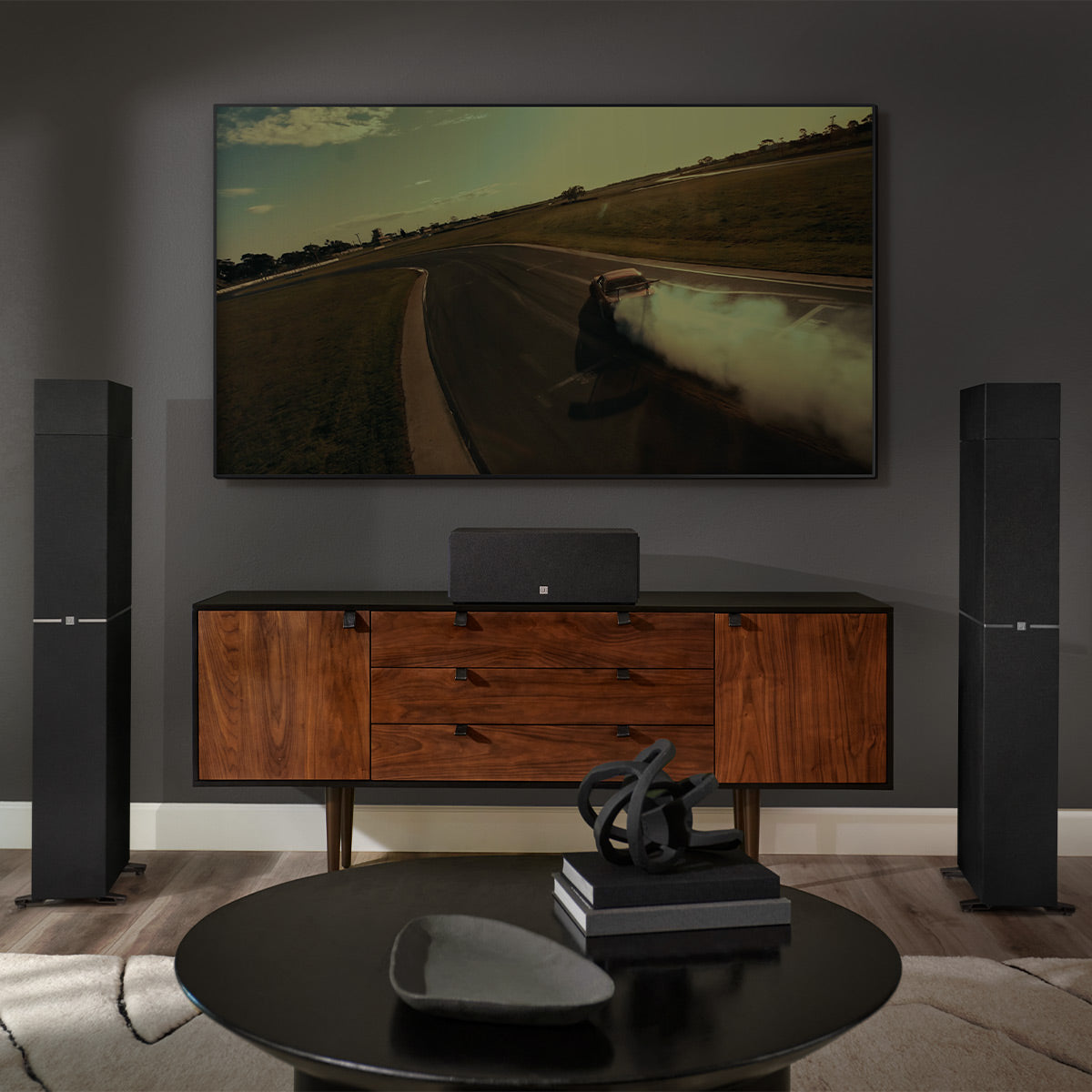

The Dymension™ DM10 center channel speaker with integrated bass radiators delivers full-range sound with superior vocal clarity and big bass impact in a compact footprint. It’s the ultimate low-profile centerpiece for immersive home theater and music systems.

Features

  • Advanced three-driver array
  • 5.25" long-throw midrange woofers
  • Aluminum oxide tweeter
  • Integrated 9" bass radiator
  • Full-range sound in a compact footprint

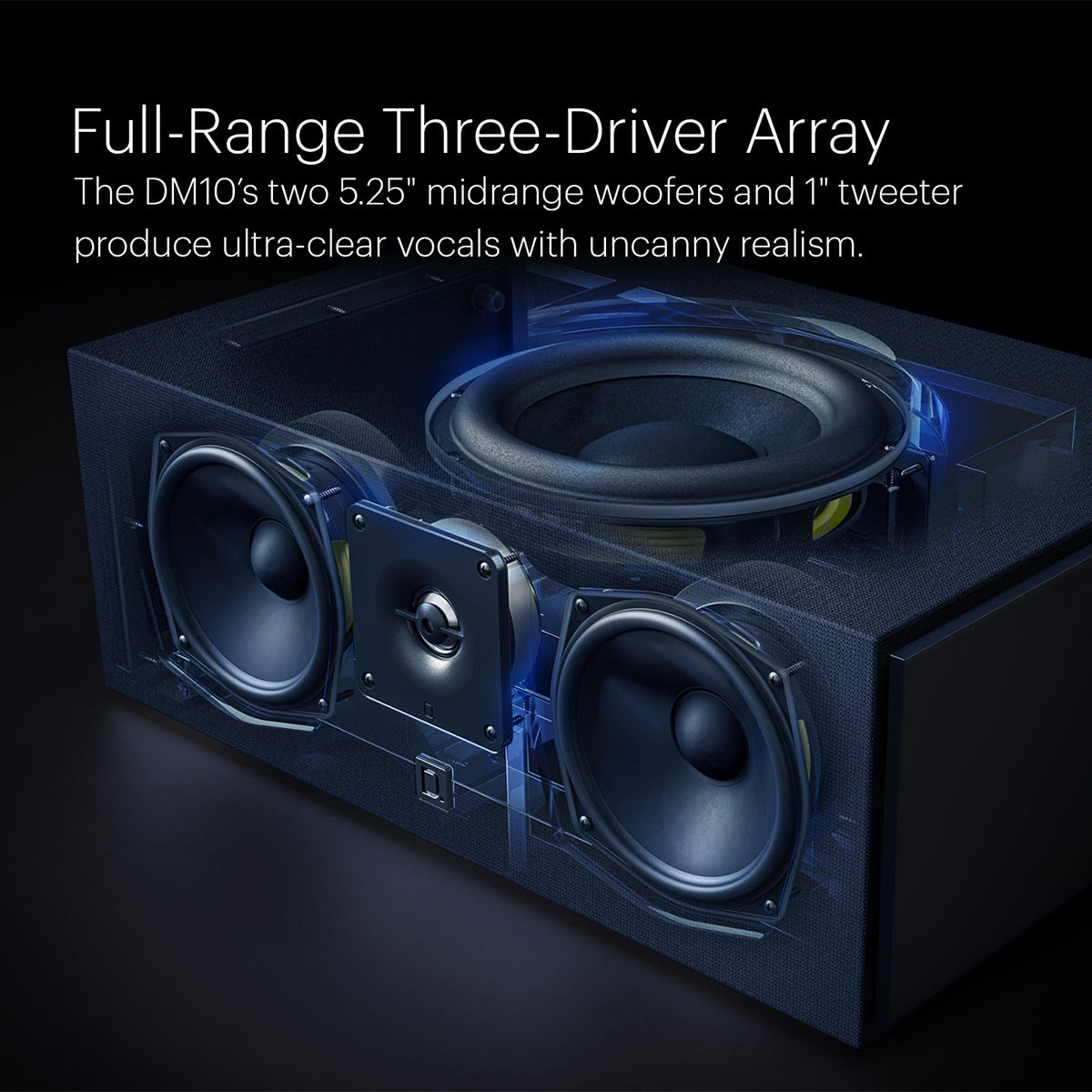

Advanced Three Driver Array

The DM10’s two 5.25" midrange woofers and 1" tweeter deliver ultra-clear vocals with uncanny realism. It’s immersive sound that draws you into the action every time.

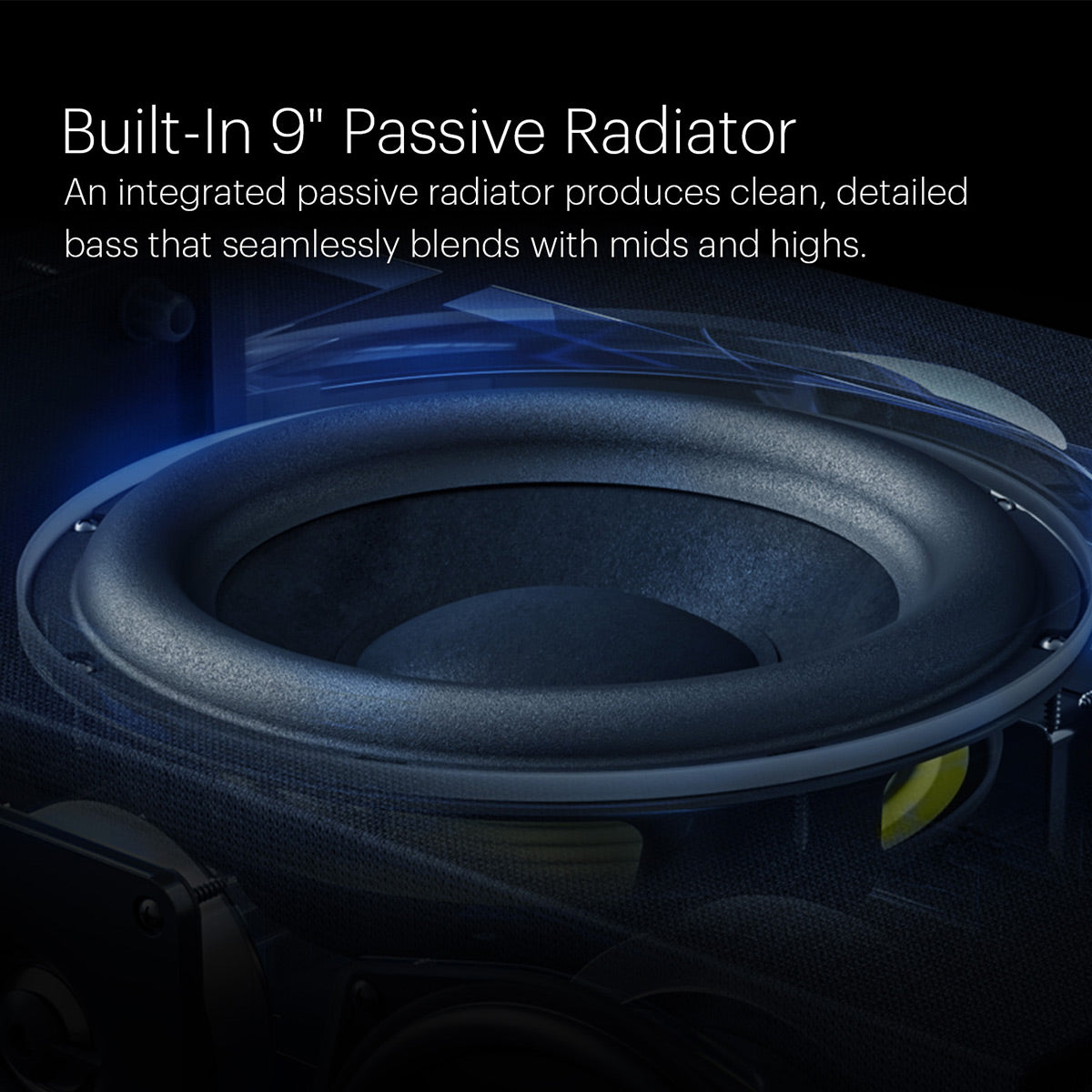

Integrated Passive Radiator

An integrated 9” passive radiator enhances bass impact, perfectly blending with mids and highs to anchor voices and effects with rich, full-range sound.

Custom Aluminum Oxide Tweeter

The DM10’s rigid, well-damped tweeter provides smooth extended response with crisp transients and exceptional definition. You’ll notice clearer speech than ever before, along with a more precise sonic image.

Long-Throw Midrange Woofers

DM10’s woofers feature composite polymer cones that produce superior midrange detail. Long-throw surrounds optimize driver excursion for improved low-end performance.

Timbre-Matched

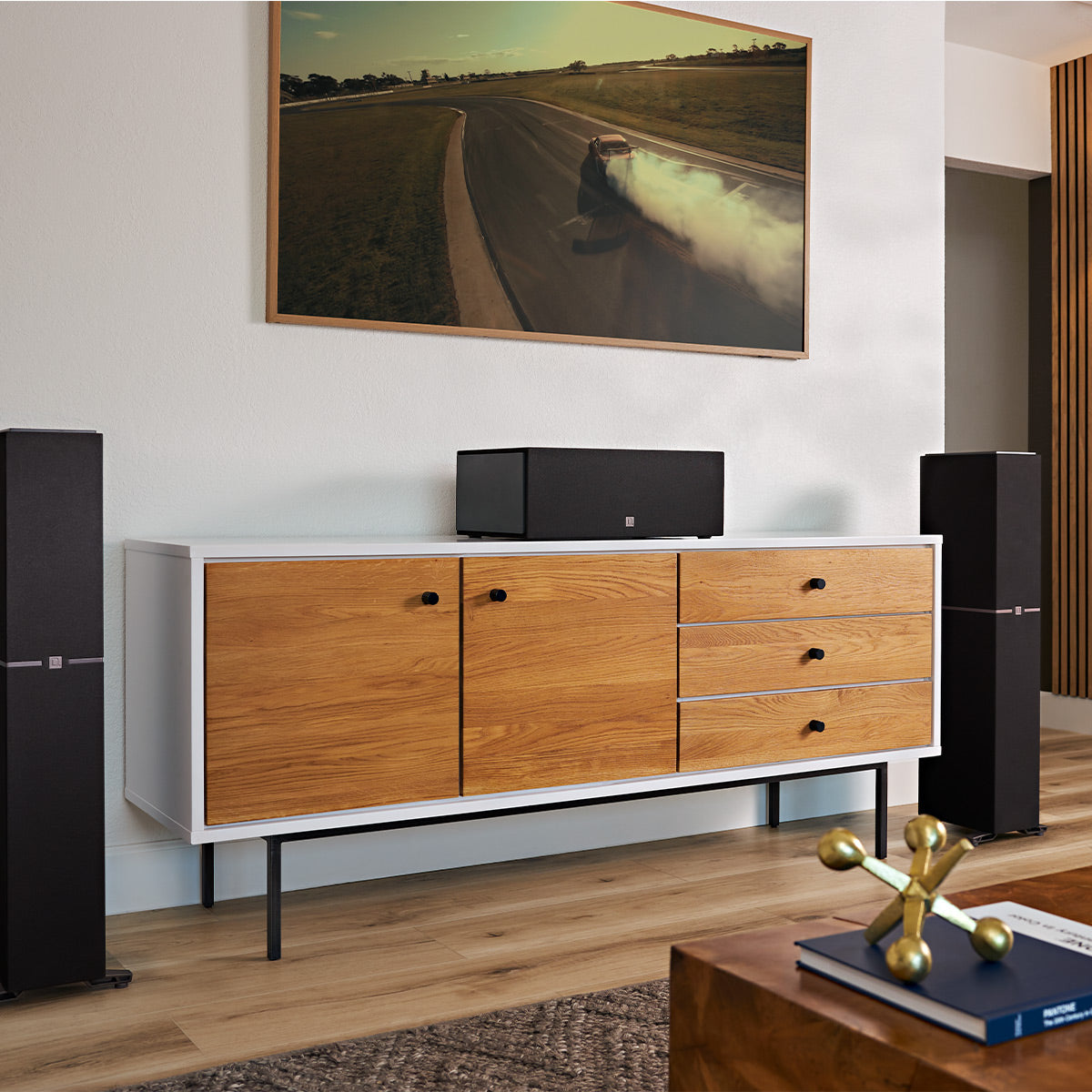

Consistent sound across Definitive Technology series gives you the flexibility to mix and match Dymension™, Dymension CI, and Mythos speakers to design your dream home theater and whole home system.

Disappearing Design

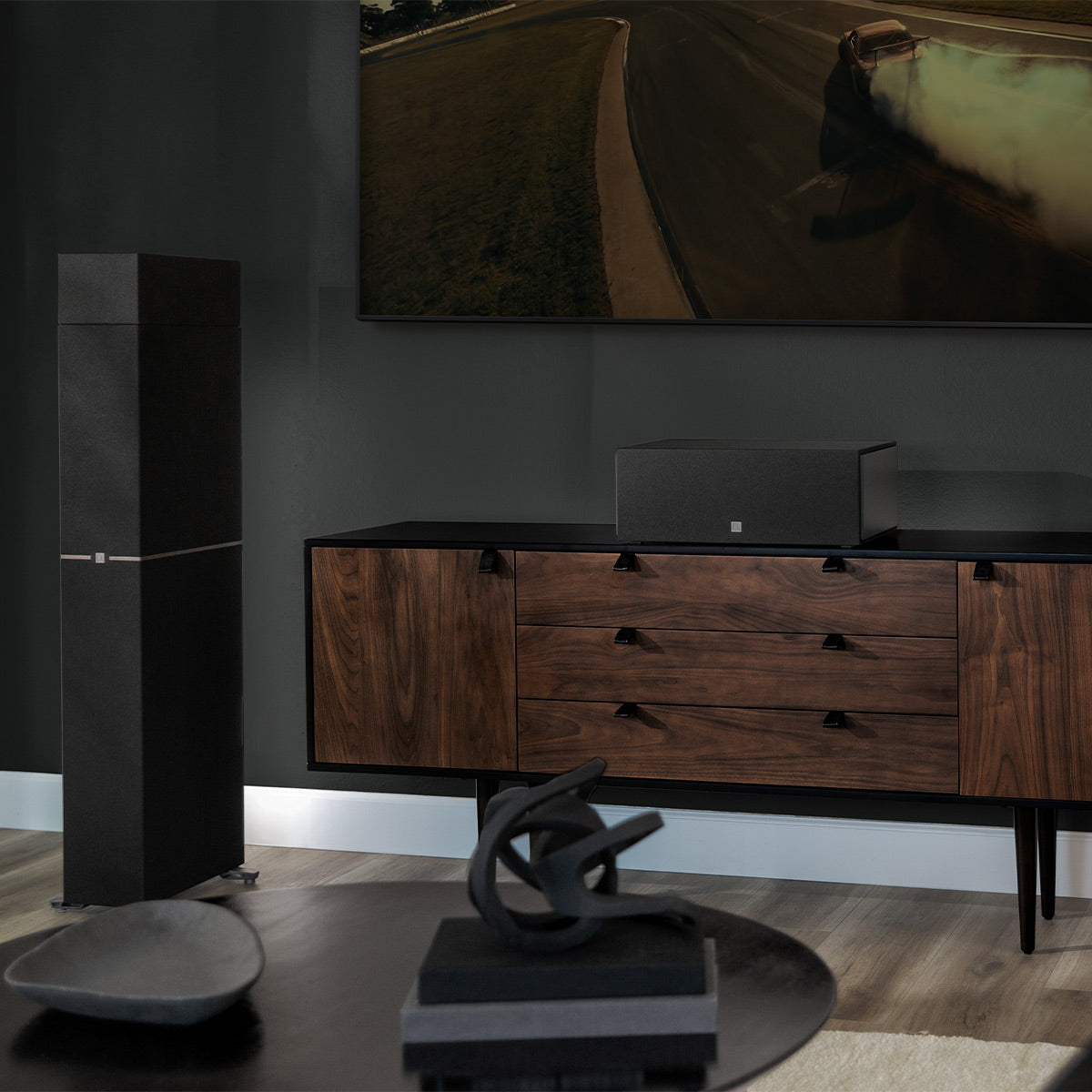

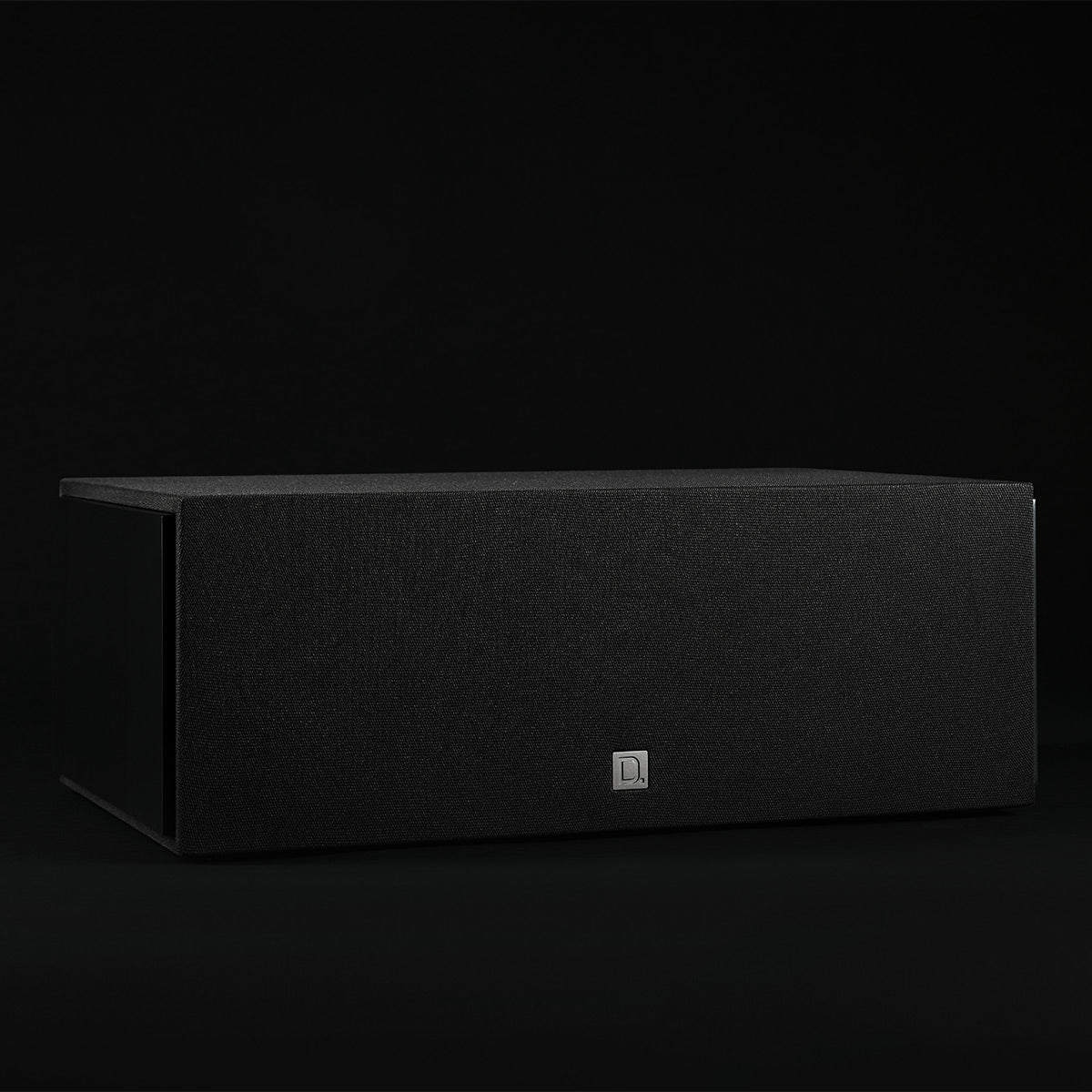

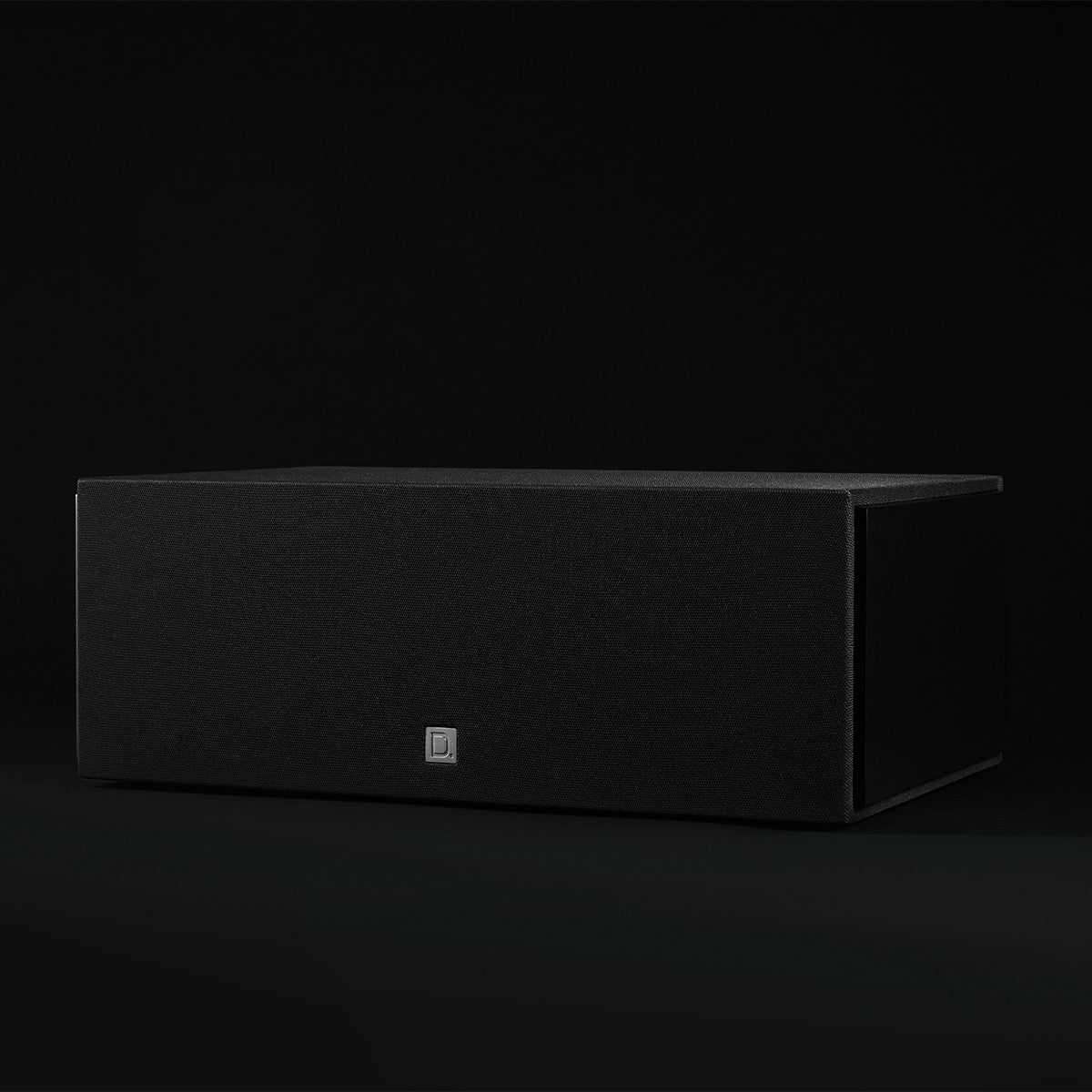

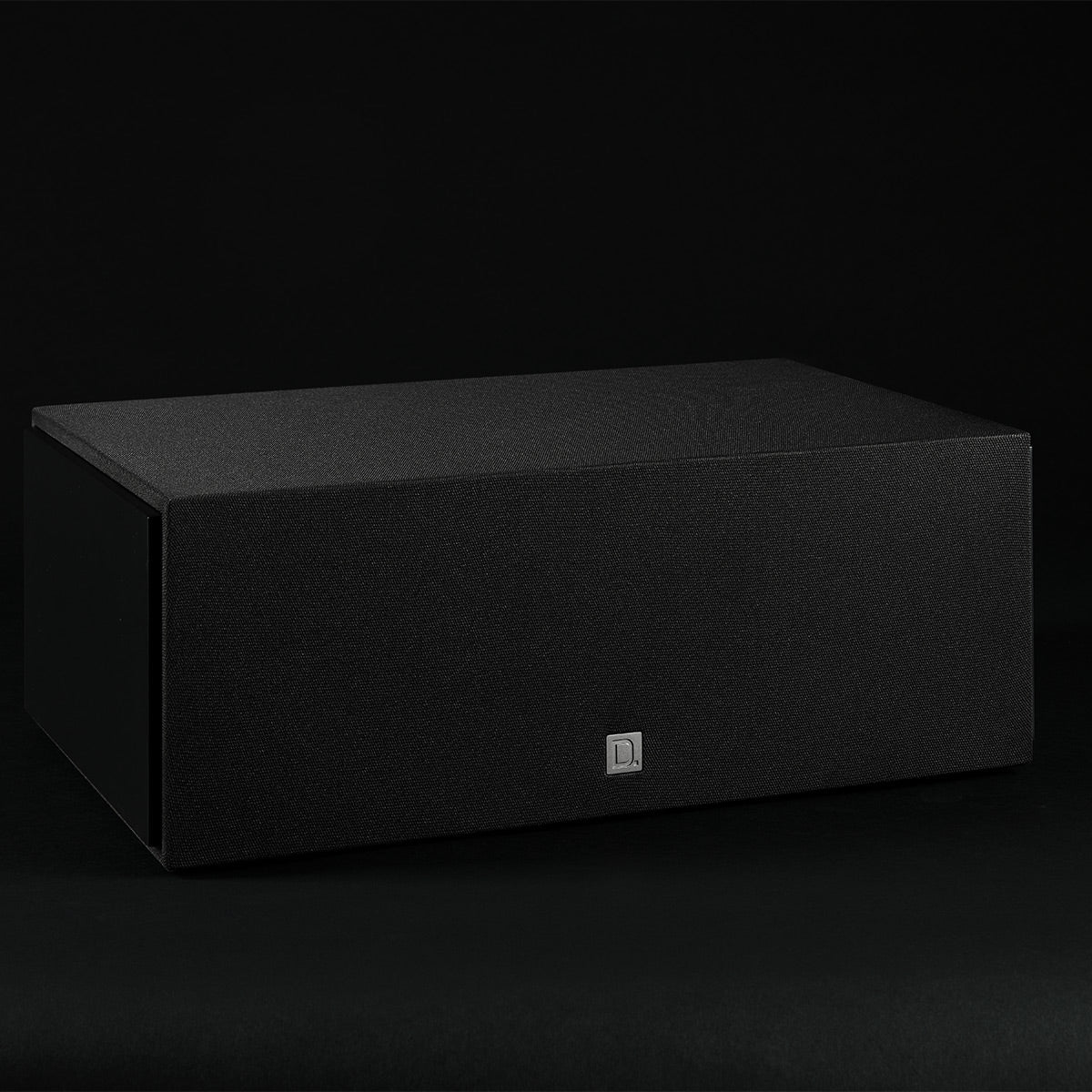

The DM10 is wrapped in an acoustically transparent black cloth grille. As soon as you dim the lights, it virtually disappears into your room—so you can focus on the movie, not your speakers.

Specifications

  • Dimensions (W × H × D): 19.5” x 7.3” × 12.2”
  • Weight: 29.1 lbs
  • Grille Material: Acoustically transparent black cloth (not removable)
  • Tweeter (1): 1 in. aluminum oxide dome
  • Midrange/Midbass (2): 5.25 in. woofers
  • Subwoofer System Driver Complement (1): 9 in. passive radiator
  • Frequency Response
    • 57 Hz–30 kHz (-10dB)
    • 81 Hz–23 kHz (-3dB)
  • Nominal Impedance: 4Ω (8Ω compatible)
  • Sensitivity: 90dB (2.83V/1m)
  • Recommended Amplifier Power Rating: 50–200W

What's In The Box

  • Dymension DM10 Compact Center Channel Speaker with Integrated Passive Radiator
  • Manual
