Audio-Technica VM530EN/H Headshell & Cartridge Combo Kit

Regular price $229.00
Sale price $229.00 Regular price
Save $-229.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Mar 18 – Tue, Mar 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Audio-Technica VM530EN/H Overview

Product Information

Model: VM530EN/H | UPC: 4961310137632

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information

Model: VM530EN/H | UPC: 4961310137632

The Audio-Technica VM530EN/H is a premium phono cartridge and headshell combination designed to elevate your vinyl listening experience. This meticulously engineered setup ensures audiophiles and vinyl enthusiasts can enjoy superior sound quality with ease.

Features

  • VM Dual Magnet Cartridge
  • 0.3 X 0.7 mil Elliptical Nude Stylus
  • Aluminum Cantilever
  • Paratoroidal Coils Improve Generating Efficiency
  • Reduced Crosstalk
  • Low-Resonance Polymer Cartridge Housing
  • Universal 1/2"-Mount Headshell For 4-Pin Turntable Cartridges

High-Fidelity Sound Reproduction

At the heart of the VM530EN/H is the VM530EN cartridge, featuring a 0.3 x 0.7 mil elliptical nude stylus. This design reduces the mass of the vibration system, allowing for accurate frequency reproduction and minimal tracking distortion. The dual moving magnet configuration aligns precisely with the left and right channels of the stereo groove, delivering exceptional channel separation and an extended frequency response.

Precision Engineering and Design

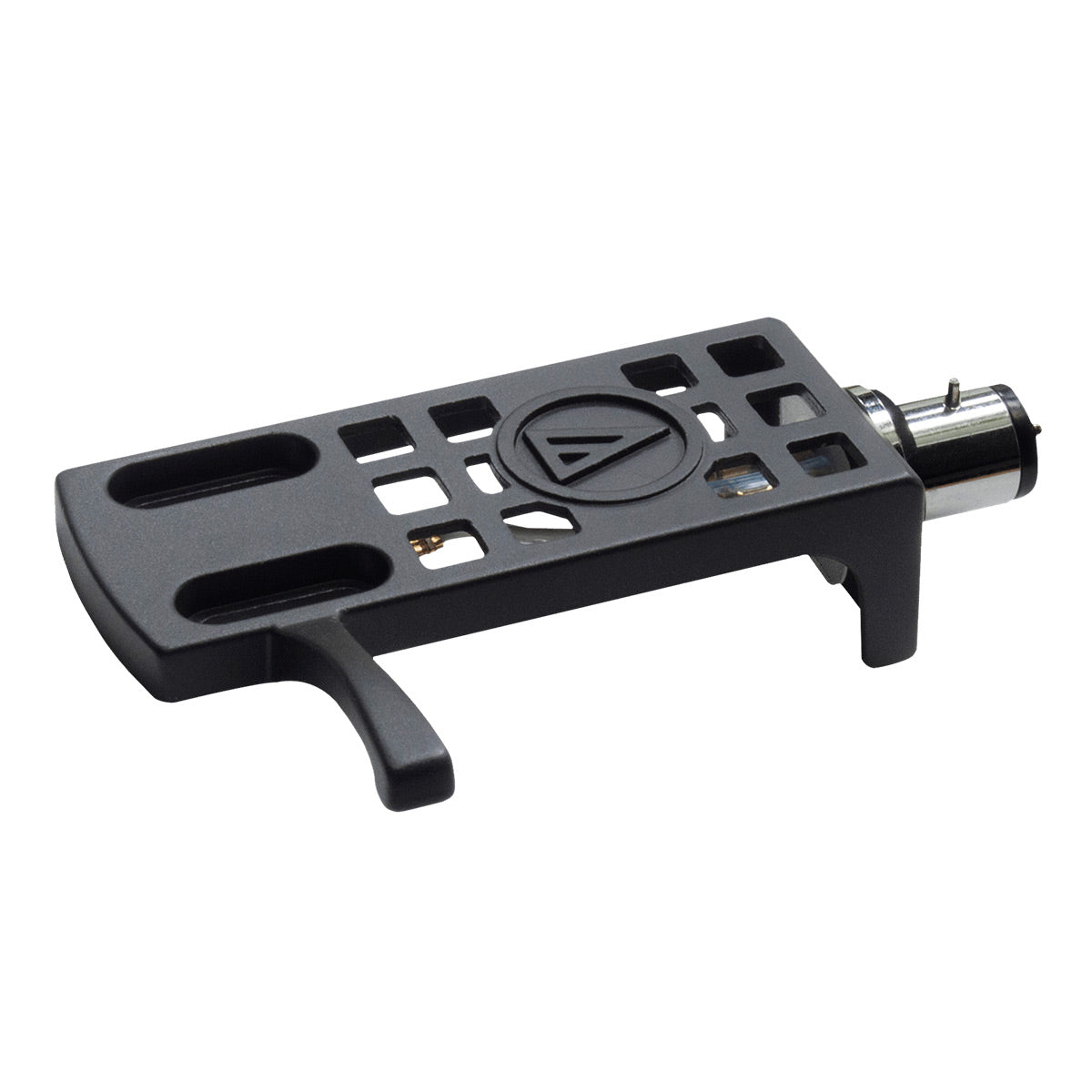

The cartridge is pre-mounted on the lightweight AT-HS10BK universal 1/2"-mount headshell, crafted from die-cast aluminum to minimize unwanted vibrations. A front-positioned finger lift enables precise stylus placement, while gold-plated lead wires ensure optimal signal transmission.

User-Friendly Installation

Designed for convenience, the VM530EN/H combo comes pre-assembled, simplifying the installation process. This makes it an excellent choice for both newcomers to vinyl and seasoned audiophiles seeking a hassle-free upgrade to their turntable setup.

Specifications

  • Frequency Response: 20-25,000 Hz
  • Channel Separation: 27 dB (1 kHz)
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
  • Stylus Construction: Nude round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 2,700 ohms (1 kHz)
  • DC Resistance: 800 ohms
  • Coil Inductance: 460 mH (1 kHz)
  • Output Voltage: 4.5 mV (at 1 kHz, 5 cm/sec)
  • Output Channel Balance: 1.5 dB (1 kHz)
  • Stylus Shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Aluminum pipe
  • Static Compliance: 35 x 10-6 cm/dyne
  • Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
  • Mounting: Half-inch
  • Dimensions
    • Cartridge 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D;
    • Cartridge & Headshell 21.3 mm (0.8") H x 21.0 mm (0.8") W x 60.4 mm (2.4") D
  • Mounting Feature: Half-inch mount
  • Recommended Load Capacitance: 100-200 pF
  • Replacement Stylus: VMN30EN
  • Stylus Size: 0.3 x 0.7 mil
  • Type: VM Type
  • Weight
    • Cartridge: 6.4 g (0.2 oz)
    • Cartridge & Headshell 16.8 g (0.6 oz)

What's In The Box

  • VM530EN/H Headshell/Cartridge Combo Kit
  • Mounting Hardware
  • Manual
