Audio-Technica VM530EN Dual Moving Magnet Cartridge

Regular price $199.00
Sale price $199.00 Regular price
Save $-199.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Feb 10 – Mon, Feb 17

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: VM530EN | UPC: 4961310137557

Specifications

What's In The Box

WARNING: California Residents - Proposition 65. This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Information

Model: VM530EN | UPC: 4961310137557

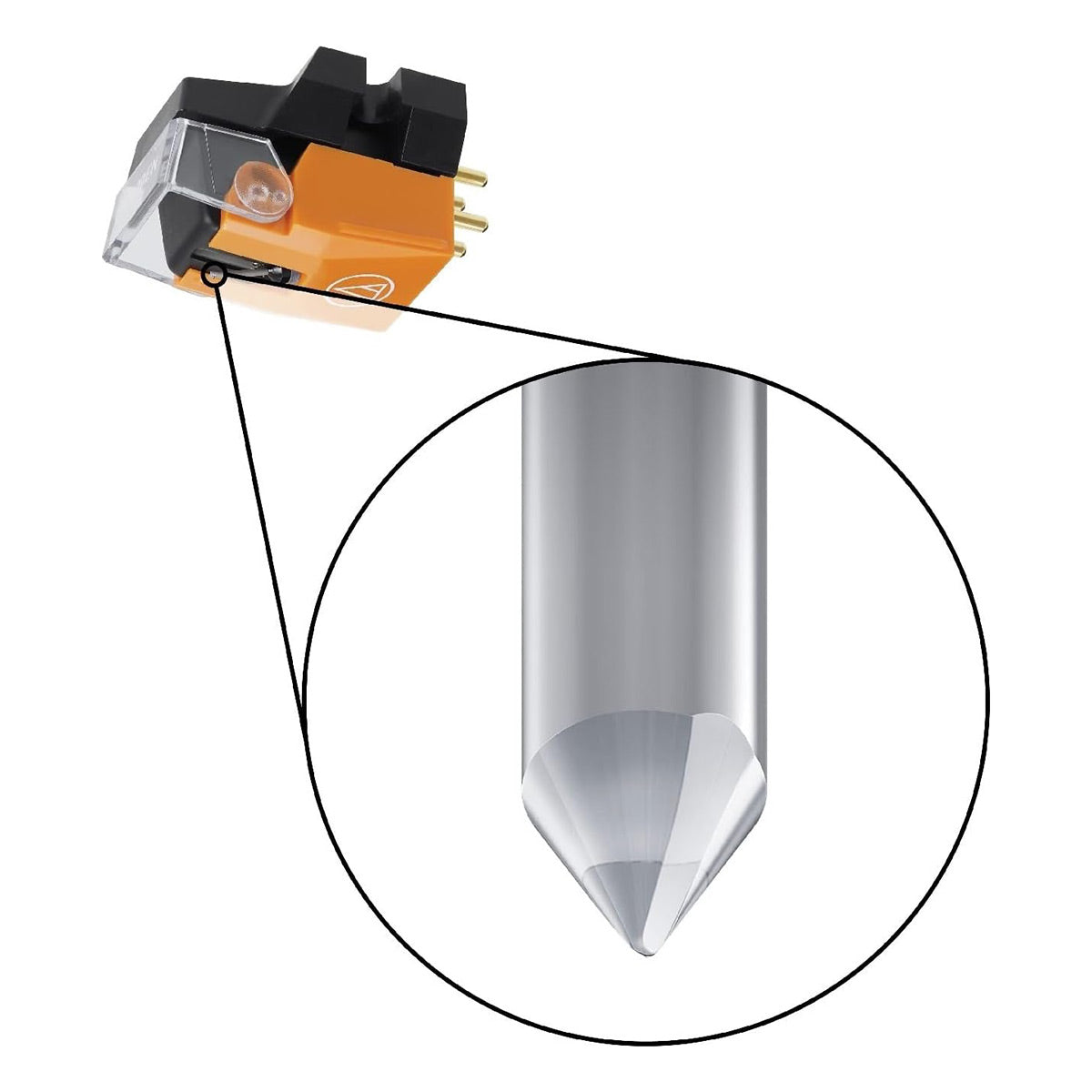

The VM530EN is a top-end elliptical stylus cartridge in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s lightweight 0.3 x 0.7 mil elliptical nude stylus reduces the execution mass of the vibration system, enabling fuller frequency reproduction and less tracking distortion than a bonded stylus.

Features

  • VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
  • Aluminum cantilever
  • Paratoroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Durable low-resonance polymer cartridge housing

Specifications

  • Frequency response: 20 - 25,000Hz
  • Channel separation: 27dB (1kHz)
  • Vertical tracking force: 1.8 - 2.2g
  • Stylus construction: Nude square shank
  • Recommended load impedance: 47,000 ohms
  • Output: 4.5mV
  • Channel balance: 1.5dB
  • Stylus shape: 0.3 x 0.7 mil elliptical
  • Mount: 1/2"
  • Coil impedance: 2,700 ohms (1kHz)
  • DC resistance: 800 ohms
  • Load capacitance: 100 - 200pF
  • Coil inductance: 460mH (1kHz)
  • Static compliance: 35 x 10-6cm/dyne
  • Dynamic compliance: 8 x 10 - 6cm/dyne (100Hz)
  • Vertical tracking angle: 23°
  • Dimensions (H x W x D): 0.7" x 0.7" x 1.1"
  • Weight: 0.2 ounces

What's In The Box

  • VM530EN Dual Moving Magnet Cartridge
  • Four cartridge installation screws
  • Two washers
  • Two hex nuts
  • Non-magnetic screwdriver
  • Brush
